FEATURES
Design : BS 1873 / ISO 15761
Face to Face : ASME B 16.10
Flanges : ASME B 16.5
Butt welding : ASME B 16.25
Testing : API 598 / EN 12266 PART 1 & 2
Material :

ASTM Specifications
Carbon Steel, Alloy Steel, Low Temperature carbon Steel, Stainless Steel, Duplex Stainless Steel,
Super Duplex Stainless Steel, any other special material.

Trims : Varieties of combinations
Operator :

Handwheel, Gear, Electrical Motor and Pneumatic Actuator.

Note :

RTJ Joints on request.
RTJ Body Bonnet Joints for ratings ≥ 1500 Ibs    (standard)

Optional :

Electrical & Geared Drive Bypass arrangement, Floor stand

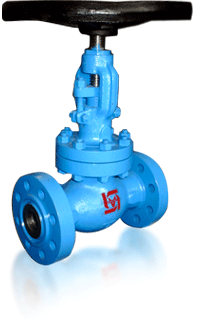

Range Globe Valve - Bolted Bonnet
valve rating 150 300 600 900 1500 2500
GBV 102 inches 2"-16" 2"-16" 2"-16" 1/2"-10" 1/2"-10" 2"-6"
mm 50-400 50-400 50-400 15-250 15-250 50-150
